Release Notes 2.2.0

What’s new

Content Development

Anti-aliased clipping for elements using the `clip-path` CSS Property

With this version, Gameface brings support for anti-aliased clip-path elements. By default, all clip paths are now rendered with antialiasing. Before they were rendered with no antialiasing unless the old AA clipping feature was enabled which required additional changes and forced the AA on all clip elements, whereas now the AA is per element. To disable the antialiasing, set the CSS property shape-rendering to optimizeSpeed on the element using the clip-path.

For more details about the new property, see the AA Clipping documentation

Core

Aspect Ratio

We've added partial support for the aspect-ratio property. For more details, see the differences to traditional browsers page

Data-binding inspection in DevTools (Chrome Inspector)

The Chrome Inspector now includes additional tools for inspecting data-binding models and data-bind attributes.

For more information, see DevTools

Declarative way to do entry and exit transitions

New features regarding transitions

Modern UI design demands smooth and clean interactions, especially when elements enter or leave the screen. To support this, Gameface introduces Entry/Exit transitions, a new bundle of transition-focused capabilities powered by two additions to the platform: the @starting-style at-rule and transition-behavior for discrete transitions.

Together, these features make it significantly easier to craft polished, predictable transitions for both element entry and exit without the need for any JavaScript, layout hacks, or forced reflows.

`@starting-style`: Define the First Frame Cleanly

The @starting-style at-rule allows authors to explicitly specify the starting values of properties during an entry transition—even if the properties are not part of the initial computed style.

Why this matters

Before, entry transitions required workarounds such as temporary classes, forced layouts, or keyframe-driven transitions. @starting-style allows authors to declare the element’s initial visual state without hacks.

What it enables

Natural fade-ins, slide-ins, and scale-ins with no JavaScript
Reliable initial frames even when DOM or display changes occur asynchronously
Cleaner, more maintainable CSS transitions

Example: Fade and Slide In Using `@starting-style`

.card {
  transition: opacity 300ms, transform 300ms;
}
@starting-style {
  .card {
    opacity: 0;
    transform: translateY(20px);
  }
}

This allows the card to transition from invisible and shifted downward to its final state smoothly on entry.

`transition-behavior`: Discrete Transitions Made Possible

transition-behavior enables transitions for discrete (non-interpolable) properties, such as display, visibility, and others.

Why this matters

Previously, exit animations and smooth state transitions were difficult or impossible without JavaScript delays or animation wrappers. Now, CSS alone can manage these transitions.

What it enables

True exit animations and transitions powered only by CSS
Predictable timing of element removal
More graceful transitions between states

Example: Exit Transition Using `transition-behavior`

.toast {
  transition: opacity 200ms, display 200ms;
  transition-behavior: allow-discrete;
}
.toast.closing {
  opacity: 0;
  display: none;
}

transition-behavior: allow-discrete ensures display: none waits until the whole transition duration is over before changing the value.

Using Both Together

@starting-style is ideal for defining entry transitions, while transition-behavior makes exit transitions clean and declarative. Together, they support fully fluid component lifecycles.

Example: Fully Animated Entry and Exit

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <style>
    .container {
      display: flex;
      justify-content: center;
      align-items: center;
      flex-direction: column;
      width: 100vw;
      height: 100vh;
    }
    button {
      border: none;
      background: none;
    }
    .add {
      font-size: 50px;
      margin: 0 auto;
    }
    .items {
      display: flex;
      flex-direction: column;
    }
    .item {
      display: flex;
      align-items: center;
      justify-content: space-between;
      background: aliceblue;
      border: 1px solid lightblue;
      border-radius: 1rem;
      padding: 0 1rem;
      width: 200px;
      height: 50px;
      transition: opacity 0.5s, transform 0.5s, height 0.5s, display 0.5s allow-discrete;
    }
    .is-deleting {
      opacity: 0;
      height: 0;
      display: none;
      transform: skewX(50deg) translateX(-25vw);
    }
    @starting-style {
      .item {
        opacity: 0;
        height: 0;
      }
    }
  </style>
</head>
<body>
  <div class="container">
    <ul class="items"></ul>
    <button class="add">+</button>
  </div>
  <script>
    function deleteListItem() {
      const listItem = this.parentNode;
      // Unfortunately there is no CSS feature that recognizes when an element
      // would need an exit transition, so we still need to do it with code.
      listItem.classList.add('is-deleting');
      setTimeout(() => {
        listItem.parentNode.removeChild(listItem);
      }, 500);
    }
    function addListItem() {
      const newItem = document.createElement('li');
      newItem.className = 'item';
      const itemText = document.createElement('p');
      itemText.textContent = 'New Item';
      newItem.appendChild(itemText);
      const deleteButton = document.createElement('button');
      deleteButton.className = 'delete';
      deleteButton.textContent = 'X';
      deleteButton.addEventListener('click', deleteListItem);
      newItem.appendChild(deleteButton);
      const list = document.querySelector('.items');
      list.appendChild(newItem);
    }
    const addButton = document.querySelector('.add');
    addButton.addEventListener('click', addListItem);
    for (let i = 0; i < 4; ++i) addListItem();
  </script>
</body>
</html>

This example demonstrates a list of items which have an entry transition when added to the list and an exit transition when removed.

Use Cases at a Glance

Collapsible menus with smooth open/close behavior
Toast notifications with clean entry and exit
Page transitions with clearer spatial flow
Component libraries needing consistent animation and transition primitives

Summary

Entry and exit transitions are a major step forward for creating expressive, maintainable UI. With @starting-style and transition-behavior, developers can craft fluid experiences without relying on scripting or brittle CSS workarounds.

Inline layout enhancements

Vertical alignment inside inline layout

Gameface now supports the CSS vertical-align property within inline paragraphs (using the cohinline attribute). The supported values are baseline, middle, text-top, and text-bottom.

The behavior of vertical-align in Gameface differs from the standard CSS specification. Reviewing the specific implementation details and differences in the Inline layout section of the documentation is essential for correct usage.

Enhanced inline line box height calculations

Line box height calculations have been updated to adhere more closely to the CSS inline specification. Previously, line boxes in the inline layout were sized solely by the content of the inline boxes rendered on that line.

With this update, inline line box heights respect logical height contributions, including font metrics and line heights inherited from parent elements. Consequently, a line box will now correctly expand to fit its calculated line height even if the elements within it contain no text, or if their text content has a smaller line height than the one dictated by the font metrics of an element higher up in the DOM hierarchy.

Multiline container box heights

Additionally, there are changes to the heights of multiline wrapped container boxes within the inline layout.

Previously:

Multiline containers were positioned at the top of their text content
Multiline containers were only as big as their own content

Now:

Multiline containers are always positioned at the top of their first line box
Multiline containers are as tall as the sum of heights of all lines they participate in
- This can be observed in the example below - the border of parentExpandingLineHeight

Example

In the snippet below, the parentExpandingLineHeight element forces the second line to expand based on its 64px font size, making the line box much taller than the visible 16px text inside it.

<div style="width: 400px;">
    <p style="display: inline; color: black;" cohinline>
        <span style="font-size: 64px;">big text </span>
        <span style="font-size: 64px; border: solid 1px black;" id="parentExpandingLineHeight">
            <span style="color: blue; font-size: 16px;">this is some wrapped text </span>
        </span>
        <span style="color: red; font-size: 16px;">and this is more text</span>
    </p>
</div>

Add childNodes entries for br elements

Fix the number of childNodes entries

Frameworks such as Svelte and SolidJS rely on the exact size of the childNodes collection to function properly. To maintain consistency, Text nodes are now created for <br> elements within their parent's childNodes list.

SVG Improvements

Closer alignment with the SVG 2.0 specification

To provide a more native and predictable experience, Gameface now includes a major overhaul of the SVG implementation, bringing it significantly closer to the SVG 2.0 specification. This defines how SVG features behave internally and how they interact with the CSS cascade. The sections below highlight the key changes.

Improved support for `<use>` elements

The href attribute is now fully supported, alongside the legacy xlink:href attribute.

A <use> element may reference any SVG element. The referenced element, together with its entire subtree, is cloned into a closed shadow root hosted by the <use> element.

Terminology used throughout this document:

Source element - the original element being referenced
Live instances - the cloned copies created inside <use>

Live instances participate fully in style computation. They inherit styles through the <use> element according to the SVG specification.

They are also truly live:

Changes to the source element propagate to all live instances.

For example, adding a class to the source element updates every live instance, and any resulting style changes are applied automatically.

Inline <use> elements can reference any element within the same shadow tree (or the document if shadow DOM is not used), including content not rendered at its original location (such as elements within <defs>).

The x and y attributes are fully implemented and translate the referenced content as defined in the spec.

Example

<!DOCTYPE html>
<html lang="en">
<head>
    <style>
        body {
            background-color: white;
            margin: 0;
        }
    </style>
</head>
<body>
    <svg width="0" height="0" xmlns="http://www.w3.org/2000/svg">
        <defs>
            <g id="aBeacon">
                <path d="M 0,0 L 0,25 L 25, 25 z" fill="red" />
                <rect x="10" y="0" width="30" height="25" fill="red" transform="skewX(45)" />
                <path d="M 75,0 L 50,0 L 75, 25 z" fill="red" />
                <rect x="0" y="0" width="75" height="25" stroke="black" stroke-width="2" fill="none" />
            </g>
        </defs>
    </svg>
    <svg width="300" height="100" xmlns="http://www.w3.org/2000/svg">
        <use x="20" y="20" href="#aBeacon" />
        <use x="120" y="20" href="#aBeacon" transform="translate(-30, 25) rotate(90, 157.5, 32.5)" />
        <use x="160" y="20" href="#aBeacon" />
    </svg>
</body>
</html>

CSS units inside SVGs

CSS units now behave according to the specification when used in SVG attributes.

This means SVG properties accept CSS length-percentages, including viewport units.

<rect width="5vh">

Example

<!DOCTYPE html>
<html lang="en">
<head>
    <style>
        body {
            background-color: white;
            margin: 0;
        }
    </style>
</head>
<body>
    <svg width="100vw" height="100vh" xmlns="http://www.w3.org/2000/svg">
        <circle cx="50vw" cy="50vh" r="50vmin" />
    </svg>
</body>
</html>

Multiple layout fixes and improved viewport negotiation

A large number of layout-related improvements ensure that SVGs behave consistently and according to expected web-standards rules.

Of particular note:

The viewport negotiation algorithm now respects:

preserveAspectRatio
the intrinsic dimensions of the SVG content
the surrounding layout system

This applies everywhere SVG content is used: inline, background images, <img> sources, border images, etc.

Example

<!DOCTYPE html>
<html lang="en">
<head>
    <style>
        body {
            background-color: white;
        }
        img {
            border: 1px solid black;
        }
    </style>
</head>
<body>
    <img src="./index.svg">
</body>
</html>

<!-- index.svg -->
<svg width="20%" height="20%" xmlns="http://www.w3.org/2000/svg">
  <rect x="10" y="10" width="50" height="50" fill="red"></rect>
</svg>

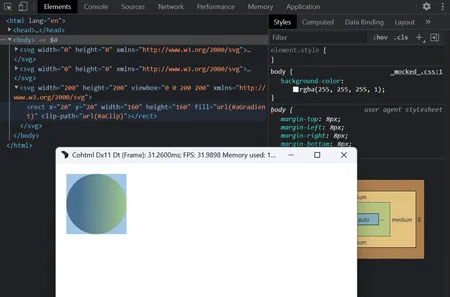

Inspectable SVG nodes

SVG nodes now expose their computed bounding boxes in the inspector. Hovering an element highlights its exact geometry.

Cross-SVG coverage effects and paint servers

Coverage effects (mask, clipPath) and paint servers (linearGradient, radialGradient, solidColor) may now be referenced across <svg> boundaries.

This enables scenarios where definitions in one SVG affect rendering in another.

<!DOCTYPE html>
<html lang="en">
<head>
    <style>
        body {
            background-color: white;
        }
    </style>
</head>
<body>
    <svg width="0" height="0" xmlns="http://www.w3.org/2000/svg">
        <defs>
            <linearGradient id="aGradient">
                <stop offset="20%" stop-color="black" />
                <stop offset="100%" stop-color="yellow" />
            </linearGradient>
        </defs>
    </svg>
    <svg width="0" height="0" xmlns="http://www.w3.org/2000/svg">
        <defs>
            <clipPath id="aClip" clipPathUnits="objectBoundingBox">
                <circle cx="0.5" cy="0.5" r="0.5" />
            </clipPath>
        </defs>
    </svg>
    <svg width="200" height="200" viewBox="0 0 200 200" xmlns="http://www.w3.org/2000/svg">
        <rect x="20" y="20" width="160" height="160" fill="url(#aGradient)" clip-path="url(#aClip)" />
    </svg>
</body>
</html>

Circular reference chains between coverage effects are resolved to match browser behavior:

We construct a spanning tree and prune cycle-creating references based on DOM order.

<!DOCTYPE html>
<html lang="en">
<head>
    <style>
        * {
            box-sizing: border-box;
        }
        svg {
            border: 1px solid blue;
        }
        body {
            background-color: white;
            display: flex;
        }
    </style>
</head>
<body>
    <svg width="100" height="100" viewBox="0 0 100 100">
        <defs>
            <clipPath id="aClip">
                <rect x="0" y="20" width="100" height="50" clip-path="url(#aClip2)" />
                <rect x="20" y="0" width="50" height="100" clip-path="url(#aClip3)" />
            </clipPath>
            <clipPath id="aClip2">
                <path d="M 0 0 L 100 60 L 60 100 z" clip-path="url(#aClip)" />
                <path d="M 0 100 L 60 0 L 100 40 z" clip-path="url(#aClip3)" />
            </clipPath>
            <clipPath id="aClip3">
                <circle cx="35" cy="35" r="35" clip-path="url(#aClip)" />
                <circle cx="65" cy="65" r="35" clip-path="url(#aClip2)" />
            </clipPath>
        </defs>
    </svg>
    <svg width="100" height="100" viewBox="0 0 100 100">
        <rect x="0" y="0" width="100" height="100" clip-path="url(#aClip)" />
    </svg>
    <svg width="100" height="100" viewBox="0 0 100 100">
        <rect x="0" y="0" width="100" height="100" clip-path="url(#aClip2)" />
    </svg>
    <svg width="100" height="100" viewBox="0 0 100 100">
        <rect x="0" y="0" width="100" height="100" clip-path="url(#aClip3)" />
    </svg>
</body>
</html>

Media queries in external SVGs

Media queries now function correctly in external SVGs, allowing responsive behavior across all SVG content sources.

Example

<!DOCTYPE html>
<html lang="en">
<head>
    <style>
        body {
            background-color: white;
            margin: 0;
        }
    </style>
</head>
<body>
    <div style="background-image: url(./index.svg); width: 300px; height: 300px;"></div>
    <div style="background-image: url(./index.svg); width: 100px; height: 100px;"></div>
</body>
</html>

<!-- index.svg -->
<svg viewBox="0 0 100 100" xmlns="http://www.w3.org/2000/svg">
    <style>
        circle {
            fill: red;
        }
    @media (max-width: 200px) {
            circle {
                fill: green;
            }
        }
    </style>
  <circle cx="50" cy="50" r="50"/>
</svg>

Rendering

HDR in the Player application

The Player application now supports displaying HDR UI content on HDR-enabled monitors. The following CLI options control the HDR behaviour:

--hdr scrgb - starts the Player in scRGB mode, where the backbuffer color values will use Rec709 primaries and be in a linear space
--hdr hdr10 - starts the Player in HDR10 mode where the backbuffer color values will be in Rec2020 colorspace and encoded with the PQ transfer function
--display-referred-tonemapping - if given, the UI content will be tonemapped in the reported display capabilities about maximum reproducible luminance.

In HDR mode, all of the content in the displayed HTML document is treated as HDR content. For more information, see the documentation page on HDR

Migration guide

Pixel Shader Changes

New shader type

In order to use the GPU path tessellator when clipping with paths, we've introduced a new shader type PST_ClipPathAtlas = 36. If you rely on custom shaders and the GPU tessellator is enabled (by default it is), you will need to update your ST_Stencil shader implementation. Below is how this case is handled in CohShadeGeometryStencil.ihlsl:

if (shaderType == 36)
{
  // Clip Path Atlas
  float2 uvPoint = input.Additional.xy;
  alpha = SAMPLE2D(txBuffer, uvPoint) COH_A8_SAMPLE_MASK;
}

Changelog

Version 2.2.0

Released 16 Dec 2025

API	Updated the CSS color() function to accept alpha values with a slash separator `color(space r g b / a)`.
API	Replaced the `coh-scrgb` custom color space in the CSS color() function with the standard `srgb` keyword.
API	Updated the internal retrieval of a `IProperty` underlying type from `BindValue`. This allows user implementations of `ToBoolean`
API	Whitespace nodes are now part of the DOM. This introduces a change in the return value of several JS APIs related to node children. See the documentation about the enhancement for details.
API	Corrected scrolling element substitution as per standard. Scroll actions on the BODY are now redirected to the HTML and scroll events for these two elements are fired on the document and the window objects.
API	Removed a non-standard behavior of transferring elements to the content part of a template element when using `appendChild`. Template elements content is populated at DOM build and can now only be changed with `innerHTML`.
API	Removed support for Sony PlayStation 5 SDK 9.
Feature	Added support for specifying an aspect ratio on elements via the `aspect-ratio` CSS property. Image elements are now keeping their source aspect ratio by default. You might need to adapt your UI to the new behavior
Feature	Added antialiased clipping on a per element basis. See the documentation on the feature for details.
Feature	Introduced new Inspector panels for real-time data-binding insights
Feature	Added support for CSS vertical-align baseline
Feature	Added support for creating declarative entry and exit transitions using `@starting-style` and transitioning discrete properties like display.
Feature	Added support for Svelte 5 UI framework.
Feature	Added Inspector tab for importing and updating data binding models.
Feature	Added Inspector tab for the data-binding attributes and expressions affecting specific node.
Enhancement	Added support for live instancing of SVG elements via `<use>` elements across different SVG resources.
Enhancement	Enhanced SolidJS support on specific use cases which relied on proper whitespace count.
Enhancement	Implemented srgb
Enhancement	Added proper support for HDR modes (HDR10 and scRGB) in the Player when using DirectX 11 and DirectX 12.
Enhancement	Improved performance of the example `InternationalizationManager` implementation by cloning `BreakIterators`.
Enhancement	Switched to a new flex layout algorithm supporting the `gap` CSS property.
Enhancement	Enhanced support for CSS units in SVG elements
Enhancement	Added support for media queries in external SVG resources used as an image
Enhancement	Added support for percent values in `border-image-slice` with SVG borders.
Enhancement	Ensured `border-image-repeat: space` works for SVG borders.
Enhancement	Added support for numeric values in border images referencing SVGs.
Enhancement	Corrected an issue where border images referencing SVGs appeared blurry when scaled up.
Enhancement	Ensured respect for nested `<svg>` elements' x
Enhancement	Ensured viewport units in SVG content work according to specification.
Enhancement	Ensured percent units in SVG content work according to specification.
Enhancement	Enabled SVG referenceable elements to resolve across separate inline `<svg>` elements.
Enhancement	Displayed SVG nodes highlight in the inspector.
Enhancement	Enabled `setInnerHTML` to parse and add SVG nodes to the DOM.
Enhancement	Started sending scroll events when changing the `scrollLeft` and `scrollTop` properties.
Enhancement	Added support for `font-size` absolute-size keywords.
Enhancement	Improved inline layout algorithm performance by increasing cache usage.
Enhancement	Added support for deep clone of template elements. Their content part is now cloned together with the element.
Enhancement	Extended `IProperty` method documentation to clarify expected behavior.
Enhancement	Enhanced documentation for mocking game data for the data-binding
Enhancement	Added warning messages for data-binding expressions that can not be evaluated.
Enhancement	Added support for global backdrop filter in the Player when using DirectX 12.
Enhancement	Added support for Surface Partitioning in the samples for Microsoft XBoxOne
Enhancement	Updated the Microsoft GDK version to 2025.04.
Enhancement	Added support for Sony PlayStation 5 SDK 12.
Enhancement Unity	Added a default text transformation implementation in Unity.
Enhancement Unreal Engine	Enabled sound in videos on iOS.
Enhancement Unreal Engine	Added Live Reload support for relative paths with the project as the root.
Enhancement Unreal Engine	Added support for DirectX 12 bindless resources.
Fix	Fixed a bug allowing users to set `scrollTop`/`scrollLeft` properties to any value for `<input>`/`<textarea>` elements
Fix	Ensured opacity works with SVG `<image>` elements.
Fix	Fixed an issue where `clip-path` did not clip elements with opacity 0.
Fix	Fixed `clip-path` clipping with the stroke of its elements.
Fix	Fixed `viewport-fill` to fill the SVG viewport instead of the viewbox.
Fix	Fixed an issue where `<svg>` direct children were not removed and repainted.
Fix	Enabled the SVG `<use>` element to query elements from other inline SVG elements.
Fix	Fixed an issue where pseudo element's content sometimes did not redraw correctly.
Fix	Fixed an issue where overflow text sometimes did not redraw correctly.
Fix	Fixed an issue where text was unable to scroll in some cases.
Fix	Fixed a crash when attaching to content-nothing elements.
Fix	Fixed a crash when users assigned the wrong type to a model property.
Fix	Fixed a crash on exit when highlighting an element from the inspector.
Fix	Fixed inconsistencies when setting styles via data-binding versus JavaScript
Fix	Stopped creating break iterators for nodes without text and for nodes whose text cannot break on a new line.
Fix	Fixed a crash caused by a missing `ITextInputHandler::OnBlur` call
Fix	Fixed a bug causing issues with stacking contexts and draw order.
Fix	Fixed a GC crash when using animations on pseudo elements.
Fix	Fixed pseudo elements disappearing from the inspector after the page reloads.
Fix	Fixed the number of `childNodes` entries to include `<br>` children elements count.
Fix	Fixed a crash when calling constructors of undefined custom elements.
Fix	Fixed incorrect line heights when wrapping inline text with varying font sizes.
Fix	Fixed binding of C++ arrays when not using TryBindArrayByRef with safe by reference binding
Fix	Removed 'missing property warning' in data binding expressions to match JavaScript behavior to thread `undefined` properties as `false`.
Fix	Fixed the "Disable JavaScript samples" checkbox under the Inspector's Performance tab.
Fix	Fixed video playback sometimes stalling instead of ending at the end.
Fix	Fixed wrongly calling audio callbacks in the ViewListener when playing videos in some cases.
Fix	Fixed videos freezing after the first playthrough.
Fix	Removed clamping of points on the bezier easing function.
Fix	Applied transitions properly when all properties were selected.
Fix	Fixed running with MSVC redistributable libraries version 14.28 and newer
Fix	Fixed a crash when `caretPositionFromPoint` failed to hit any node.
Fix	Allowed prefetching of the same script or stylesheet when multiple elements in the DOM requested it.
Fix	Ensured prefetching of resources/stylesheets works for all elements that reference the same resource.
Fix	Fixed visual artifacts when using the compositor in the samples on Microsoft XboxOne.
Fix	Fixed multithreaded race conditions causing DOM object lifetime issues.
Fix	Fixed infinite recursion with complex selectors in non-inline SVG.
Fix	Fixed a crash in the custom effects sample for MacOS
Fix	Fixed being able to set style values to `NaN` from JavaScript and data-binding
Fix	Fixed a crash with precise data-binding updates when emptying and filling again a collection.
Fix	Fixed `unsigned long` and `long` binding precision loss on non- Microsoft Windows platforms.
Fix	Fixed NodeFilter callback function `appendNode` not being called
Fix	Fixed elements sometimes matching their removed ID.
Fix	Fixed a bug in the GPU resource cache where render targets were not reused properly
Fix	Fixed a shader bug that caused invalid values when using the `mix-blend-mode` CSS property in some circumstances.
Fix	Fixed redraw of duplicate layers when using backdrop filter.
Fix	Added handling for old integrated Intel GPUs for the DirectX 11 and DirectX 12 native backends.
Fix	Fixed a bug causing a crash on Switch when many textures were recreated.
Fix	Fixed a bug causing a crash when decoding lossless WebP images
Fix	Fixed a crash when using backdrop filter and custom effects
Fix	Fixed a bug causing a crash on PS5 when rendering empty views.
Fix Unity	Fixed data-binding for C# objects on Android for Unity
Fix Unreal Engine	Fixed memory corruption on Sony PlayStation 5 by reserving the starting virtual address for JavaScript heap near the end of the address space.
Fix Unreal Engine	Fixed trying to use destroyed textures in Unreal Engine
Fix Unreal Engine	Fixed the gamma correction when loading raw images

Release Notes 2.2.0

What’s new

Content Development

Anti-aliased clipping for elements using the `clip-path` CSS Property

Core

Aspect Ratio

Data-binding inspection in DevTools (Chrome Inspector)

Declarative way to do entry and exit transitions

New features regarding transitions

@starting-style: Define the First Frame Cleanly

Why this matters

What it enables

Example: Fade and Slide In Using @starting-style

transition-behavior: Discrete Transitions Made Possible

Why this matters

What it enables

Example: Exit Transition Using transition-behavior

Using Both Together

Example: Fully Animated Entry and Exit

Use Cases at a Glance

Summary

Inline layout enhancements

Vertical alignment inside inline layout

Enhanced inline line box height calculations

Multiline container box heights

Example

Add childNodes entries for br elements

Fix the number of childNodes entries

SVG Improvements

Closer alignment with the SVG 2.0 specification

Improved support for <use> elements

Example

CSS units inside SVGs

Example

Multiple layout fixes and improved viewport negotiation

Example

Inspectable SVG nodes

Cross-SVG coverage effects and paint servers

Media queries in external SVGs

Example

Rendering

HDR in the Player application

Migration guide

Pixel Shader Changes

New shader type

Changelog

Version 2.2.0

`@starting-style`: Define the First Frame Cleanly

Example: Fade and Slide In Using `@starting-style`

`transition-behavior`: Discrete Transitions Made Possible

Example: Exit Transition Using `transition-behavior`

Improved support for `<use>` elements
